BAROGRAPH
Merk : KETTERER
Negara Asal : Netherlands

Specification :

* Measuring range : 106, 7 Pa
* Accuracy limit : ± 1, 5% from measurement span
* Rotation of druk : 1x in 1 day
* Model with mech. clock : 1x in 7 days
* Model with electr. clock : 1x in 7 days ,
1x in 31 days
* Dimensions drum : diameter 93, 3 mm
* Height : 93 mm
* Writing height : 82 mm
* Feed : 1, 67 mm, at 24 hrs rotation 11, 5 mm/ h
* Dimension : 280 x 138 x 180 mm
* Weight : 2, 5 kg
* Accessories :
- 1 set recording strips ( 100 sheets)
- 1 spare fibre pen

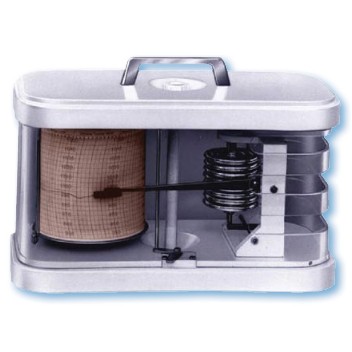

Barograph for recording atmospheric pressure. Pres- sure deviations are sensed by an eight-pieces tem- perature-compensated aneroid box and recorded on the drum through a pointer mechanism. The case is made of white coated aluminium die casting and re- movable upper part with crystalclear Macrolon pano- ramic hood. All parts have been manufactured from corrosion-resistant materials.

Barograph for recording atmospheric pressure. Pressure deviations are sensed by an eight-pieces temperature-compensated aneroid box and recorded on the drum through a pointer mechanism.

REGISTRATION ATMOSPHERIC PRESSURE MECHANICAL or ELECTRONICAL CLOCKWORK

Ketterer barograph model 1.00
