PIPE AND CABLE LOCATOR
TYPE : TW-6
MERK : FISHER - USA
Specification :

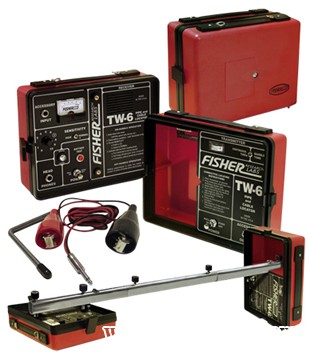

Fisher TW-6 Pipe and Cable Locator
The TW-6 Pipe & Cable locator finds underground pipes, cables,
manhole covers, vaults, valve boxes and other metallic objects
AFFORDABLE, TOUGH AND SIMPLE TO USE.
The industry standard
Unlike other units that use a separate transmitter and receiver, the TW-6,
when mounted on the handle, can conduct “ blind” searches of an area to
locate an underground pipe or cable where the starting point is unknown
Noise cancelling circuitry eliminates power line interference
OPTIONAL ACCESSORIES
Tracer Probe
Coupling Clamp
3 pc Handle Kit
Hard Carrying Case
Sonde
Stereo Headphones
Fisher Phones
Ground Rod Harness Assembly Included
RECEIVER
Operating Frequency: 81.92 kHz + .005%
Batteries: 8 each AA ( NEDA 15)
Weight: 3 lbs. ( 1.36 kg)
Sensitivity: Normal: 400 uV typical High: 8 uV typical
Signal-to-noise Ratio: 110 dB
Headset Impedance: 600 ohms ( mono) 8 ohms ( stereo)
Dimensions: 11 1/ 2” x 9” x 3” ( 29 x 23 x 7.6 cm)
Operating Temperature: -10° F to + 120° , ( -23° C to + 48° C) depending on batteries used
Total Weight: 5.5 lbs. ( 2.5 kg) - ( without handle accessory, ground plate assembly & op manual)
Total Shipping Weight: 6.75 lbs. ( 3 kg) - ( including only ground plate assembly and operating manual)
TRANSMITTER
Operating Frequency: 81.92 kHz + .005%
Batteries: 8 each AA ( NEDA 15)
Weight: 2.5 lbs. ( 1.1 kg)
Dimensions: 11 1/ 2” x 9” x 3” ( 29 x 23 x 7.6 cm)
Operating Temperature: -10° F to + 120° , ( -23° C to + 48° C)
