SPECIFICATIONS
XLT-30 OPTION B MULTI-SENSOR MICROPHONE
STANDARD EQUIPMENT:
• Heavy-Duty Carrying Case
• Probe Cable Assembly
• Operation Manual
• Control Unit
• Head Phones
• Multi-Sensor
• Carry Strap
• Housing Bracket
• Sound Rods
• WEIGHT: 10 lbs. ( 4.5 kg)

Operatin g Frequency:
60 Hz to 6 kHz, Gain = 95 db
20 Hz to 60 Hz, Gain > 90 dB
Filter Types and Frequency Ranges: All Pass: 60 Hz to 6 kHz
Low Pass: Adjustable cut-off frequency from 150 Hz to 2.4 kHz
High Pass: Adjustable pass band frequency from 150 Hz to 2.4 kHz
Band Pass: Adjustable center frequency from 150 Hz to 2.4 kHz
Notch Filter: Adjustable center frequency rejection from 150 Hz to 2.4 kHz
Can be used simultaneously with any filter option
Output Indications:
Audio: High performance headphones ( 64 ohms)
Visual: LCD bar graph and 2-digit numeric display
Grade of Protection: Splash Proof
Battery Test: Automatic
Battery Quantity/ Type: 2 / 9V Alkaline
Battery Life: 50 Hours ( approximately)
Download Manual

XLT-30 OPTION A BIG FOOT MICROPHONE & HYDROPHONIC PROBE

STANDARD EQUIPMENT:

Heavy-Duty Carrying Case
Hydrophonic Cylinder Probe
Probe Cable Assembly
Operation Manual
Control Unit
H ead Phones
Big Foot
Carry Strap
Housing Bracket
Sound Rods
WEIGHT: 19 lbs. ( 8.6 kg)
.
.
XLT-30 OPTION A BIG FOOT MICROPHONE & HYDROPHONIC PROBE

STANDARD EQUIPMENT:
• Heavy-Duty Carrying Case
• Hydrophonic Cylinder Probe
• Probe Cable Assembly
• Operation Manual
• Control Unit
• H ead Phones
• Big Foot
• Carry Strap
• Housing Bracket
• Sound Rods
• WEIGHT: 19 lbs. ( 8.6 kg)

XLT-30 OPTION C LITTLE FOOT MICROPHONE & HYDROPHONIC PROBE
STANDARD EQUIPMENT:
• Heavy-Duty Carrying Case
• Hydrophonic Cylinder Probe
• Probe Cable Assembly
• Operation Manual
• Control Unit
• Head Phones
• Little Foot
• Carry Strap
• Housing Bracket
• Sound Rods
• WEIGHT: 9.5 lbs. ( 4.3 kg)

XLT-30 OPTION D BIG FOOT & MULTI-SENSOR MICROPHONES

STANDARD EQUIPMENT:
• Heavy-Duty Carrying Case
• Probe Cable Assembly
• Operation Manual
• Control Unit
• Head Phones
• Multi-Sensor
• Carry Strap
• Housing Bracket
• Sounds Rods
• Big Foot
• WEIGHT: 19.5 lbs. ( 8.8 kg)

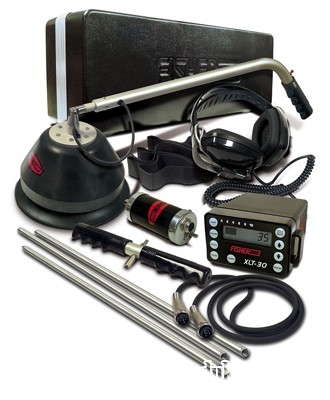

Fisher’ s XLT-30 leak detector is built to perform and priced to compete. With advanced electronic amplification and filtering, an all tactile keypad along with an easy to read digital display and notch feature, which allows independent suppression of outside interfering noise, the XLT-30 proves its worth again and again. Fisher’ s XLT-30 is available in 3 options: Option A with a Bigfoot Hydro¬ phonic probe sensor, Option B with the New Multi-Sensor & Option C with the Littlefoot Hydrophonic Probe. In the Fisher tradition, the XLT-30 is affordable, tough, and simple to use while providing maximum performance. A two year limited warranty comes standard
